| PRODUCTS |
|
|
|
873 STRETCH-BREAK CONVERTER:
THE EXCLUSIVE TWO-LEVEL
STRETCH-BREAKING TECHNOLOGY
|
Stretch-Break Converter Type 873 |
|
The type 873 stretch-break converter is
suitable for the conversion of any type of tow, with
adjustable and reproducible diagrams. The main processed
fibres are acrylic (PAN), polyester (PES), polypropylene
(PP) or viscose (CV).
The main features are
• Flexible handling and easy
adjustment of the machine
• Reduced and simple maintenance
• Robust overall construction
• Upon request: machine with working side ON THE LEFT
• Efficient crimping device for a perfect out coming
sliver (see photo)
• Efficient steaming device for fixed fibres and also
high-bulk tops
• High productivity by high powered heating plates (48
kW)
|
Crimping device |
 |
|
| |
|

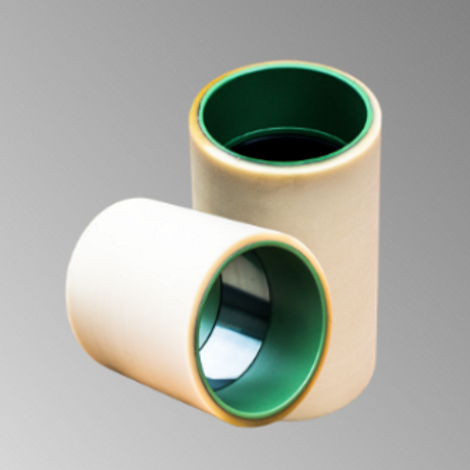

Pressure roll SP1100.4
Id.-No. 0460510010
Our valued customers have often asked us to offer our
pressure roll for the latest generation of stretch-break
converters with a bigger outer diameter. With immediate
effect, the new standard outer diameter is 285 mm,
suitable for machines type 875, 873, 871, 870, 860 and
679.
Besides the usual and well-known reliability due to 100
% German manufacture, this roll features longer
operation time thanks to thicker ©Vulkollan coating and
best bonding.
Our spare parts department is looking forward to
receiving your enquiries and orders:
tatjana.dyherrn(at)seydel-germany.com or
constanze.grohmann(at)seydel-germany.com
|
 |
|
| |
 |

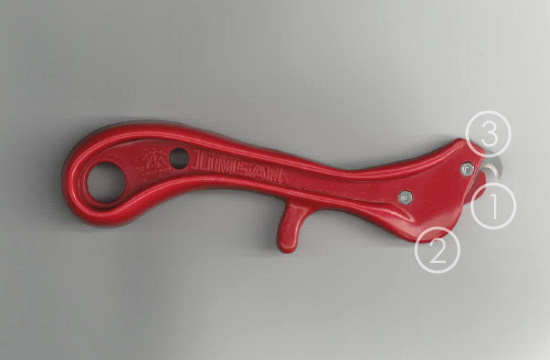

Knife with hook
blade
Id.-no.: 1377210222
This knife has the following advantages for the use on a
stretch-break converter (removal of a lap):
1. Safety lock to prevent injuries
2. Special design to protect delicate surfaces of
pressure rolls, pre-stretching and breaking cylinders
3. Exchangeable, two-sided hook blade for quick and
effective removal and cutting of material
|
|
| |
Manual tow splicer
Id.-No. 0190110000
To strongly connect tow ends by splice on stretch-break
and cut converters. Tow splice instead of knot increases
the machine efficiency and reduces the waste percentage.
Easy operation.
Technical details
Tow weight: up to 240 ktex
Working width: 685 mm
Operation time: approx. 1,5 minutes
Compressed air pressure: 8 – 10 bar
Compressed air consumption: approx. 500 l per splice
Measurements: 800 X 750 X 920 mm
Net weight: 45 kg
|
|
|
| |
New types of cleaners with integrated lap stop in
the pre-stretching zone
Standard type from machine type 875 – retrofit for older
machines type 873, 871, 870 and 860.
Advantages:
- more points of control
- machine stops quicker in case of lap formation = less waste of
material
- fewer machine standstills as the operator can react quicker
- quicker change of the cleaner ledges
Cleaner A+B
Id.-No. 01705599AB
(= complete modification set for 1 machine)
or:
Cleaner type A
Id.-No. 017055099A
(only for pre-stretching head 1/3 + 2 / 7 x needed for
each machine)
Cleaner type B
Id.-No. 017055099B
(only for pre-stretching head 2 center / 1 x needed for
each machine)
|
|
|
| |
| |
| SERVICE |
|
|
|
|
| |
EQUIPMENT
We offer overhauled and/or reconditioned machines of many kinds
(long-staple machinery).
Should you be interested in such equipment, we kindly ask you to
contact
astrid.holzhauer(at)seydel-germany.com
SPARES
For spare parts enquiries please contact
tatjana.dyherrn(at)seydel-germany.com or
constanze.grohmann(at)seydel-germany.com by indicating the
following details:
Machine type with serial number / Complete description as per
catalogue + page no. + pos. no. + id.-no. /
Requested quantity
TECHNICIAN
Should you need the visit of a technician to check your Seydel
machine, please contact
astrid.holzhauer(at)seydel-germany.com for a quote.
|
| |
|
|
|
|
| |
|
|
|
|
